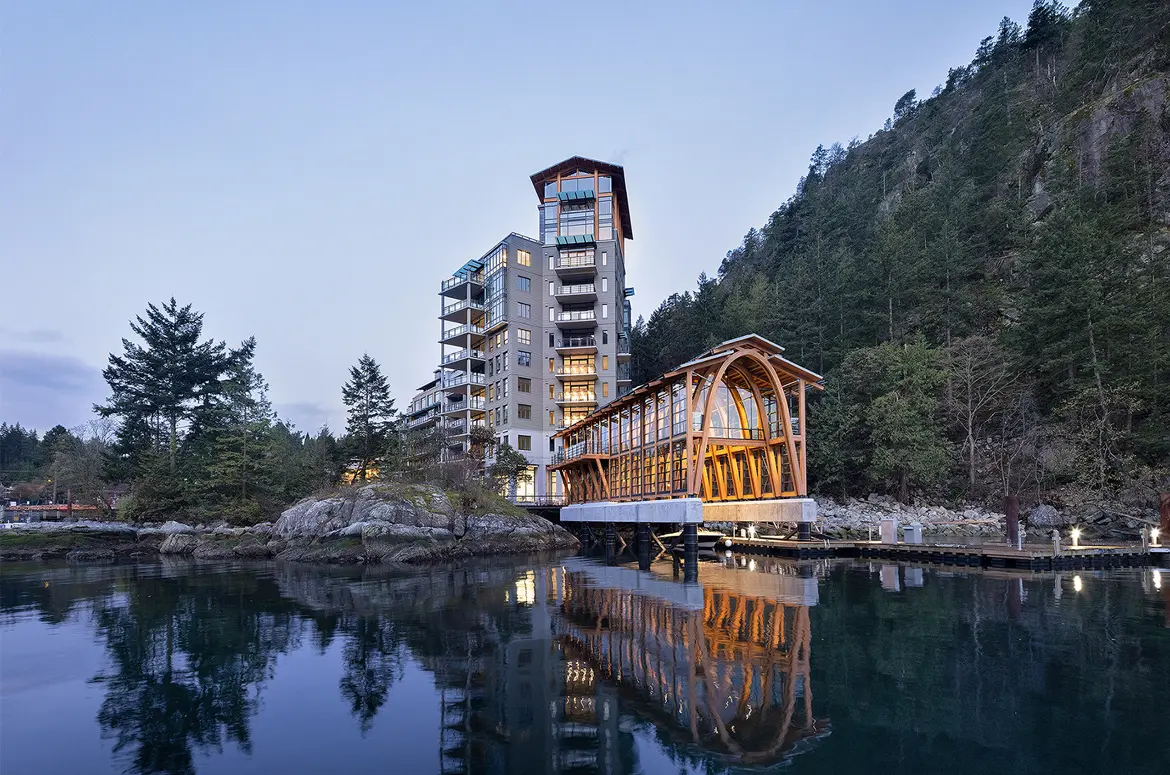

Situated in the West Vancouver community of Horseshoe Bay, Sewell’s Marina is a large residential complex that will provide its residents with stunning views of Howe Sound and the Gulf Islands. It will include 6 style-varying buildings comprised of 158 suites along with a series of cottage-inspired townhomes. Under the direction of the developer, Westbank Corporation, the project architect, Merrick Architecture, designed the project to be an extension of the existing village that is inspired by the west coast marine setting.

Our team was engaged by the glazing contractor, Siber Façade Group, to support the design development and implementation of the complex’s façade. Our team is also involved in the development of the performance mock-up (PMU) that will be used to test whether the glazing system will perform as designed.

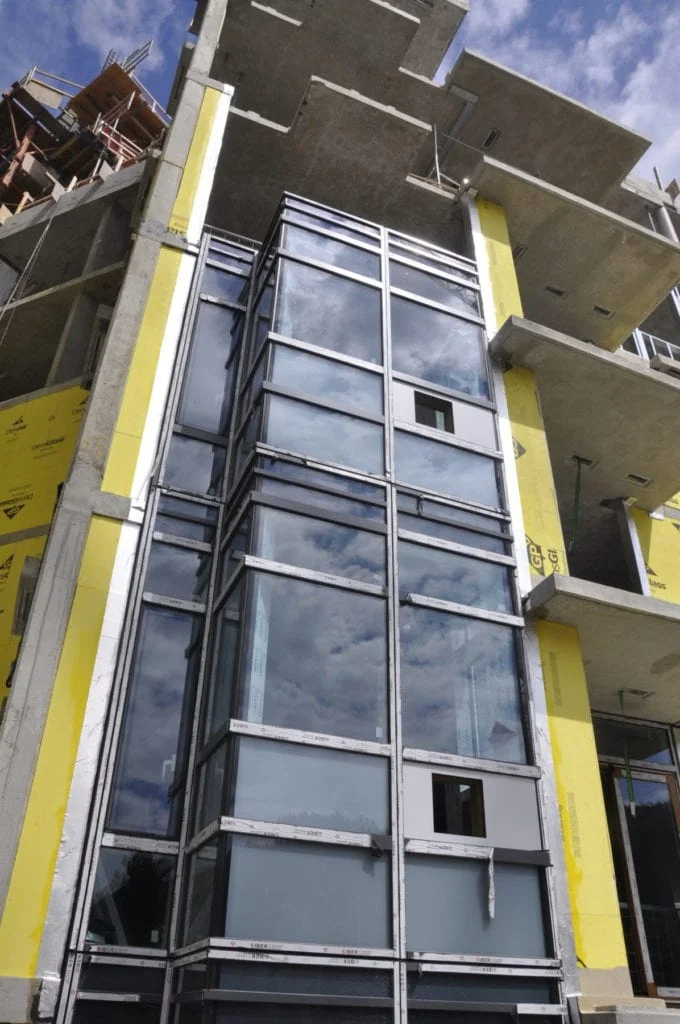

The complex integrates a custom curtain wall that uses a split mullion system throughout the entire project. Because this custom-designed system has not been used before, our team reviewed the shop drawings to ensure that the mullions would be equal to the façade’s structural demands.

Our team worked quickly to provide Siber with accurate calculations that would account for the various sectional properties, wind load, and structural demands. The PMU testing will confirm whether the calculations are correct and whether the project team can continue with the next phase of the project. Our team will be on hand to witness the testing and provide the project team with any necessary structural remediation.

The project is currently still in the design phase and is projected to be complete in 2020. It is a prime example of the many ways we can help our clients implement complex and unique façade structural systems into their projects.

Date:

May 22, 2019

Client:

Siber Façade Group

Developer:

Westbank Corporation

Our Role:

Structural Glazing Engineer

Key Services

Early Stage Design Assistance
Design Construction Documents Review
Structural Field Review
Structural Testing

Often the best value that our Façade Structures team can contribute to a project is during the early stage of design. We help our clients explore conceptual design opportunities and support the design team by answering questions such as “Can we actually do this?” “What will this cost?” and “How can we optimize our systems?” Our team is able to assess the interaction between the building enclosure design, energy performance, and ventilation strategies to support the development of advanced and unique building façades. Once we have defined these elements of the project, we are able to better focus our services during the subsequent stages of work.
